PIRMAX ISO²

PIRMAX ISO² Panel is an Australian Made modified PIR (Polyisocyanurate) rigid thermal panel that can be used in many applications.
PIRMAX ISO² Panel is a high performance insulation product for use in commercial and residential developments. Designed to achieve excellent thermal performance, and reduce thermal bridging, by providing a continuous barrier where minimal cavity is available.
PIRMAX ISO² Panel has amongst the highest thermal values of rigid board insulation products, giving buildings continued thermal efficiency throughout their life span.

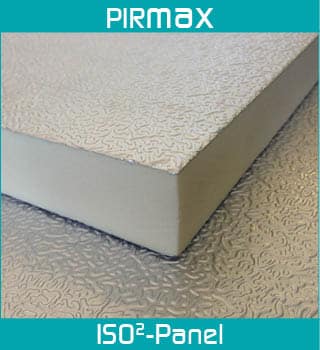

PIRMAX ISO² Panel is a light weight closed cell PIR consisting of a Polyisocyanurate foam inner core, thermoset between two layers of embossed aluminium foil facings.

Benefits

Complies with AS/NZS 4859.1:2018.
Achieves a Group 2 BCA/NCC fire classification when tested in accordance with AS 5637.1:2015 in a full room ISO 9705 test.
Achieves excellent fire hazard results when tested to AS/NZS 1530.3.
RED LIST FREE product, ingredients are 100% disclosed to 100 ppm, and do not contain any Red List chemicals.
Custom lengths and widths available upon request (min order quantities apply).
Manufactured in Australia for fast manufacturing turnaround times.

Applications

PIRMAX ISO² Panel is designed to be used in exposed wall or ceiling/soffit applications typically in commercial or multi-residential use, it can also be used in residential applications.
The PIRMAX ISO² Panel is designed to be mechanically fixed into concrete or masonry substrates in accordance with the installation instructions.

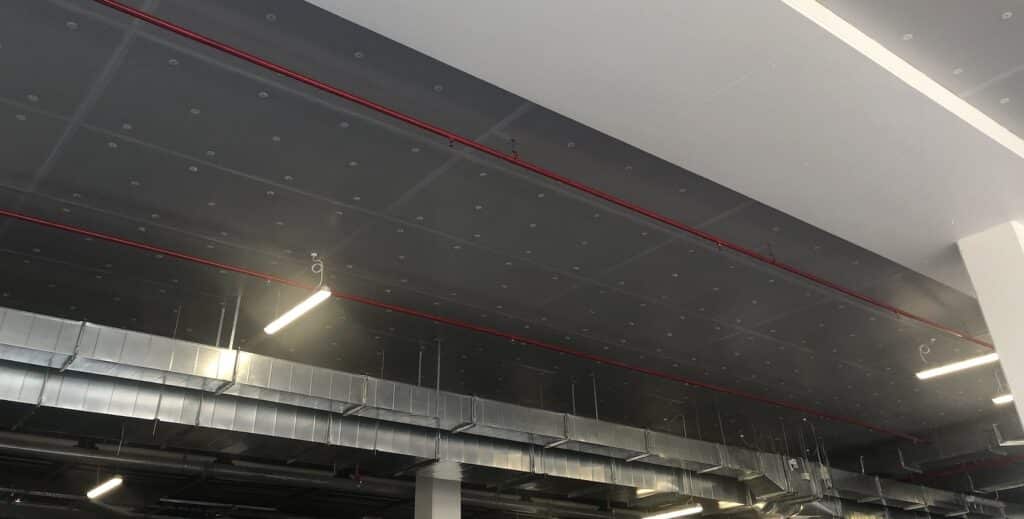

Typical applications include Soffit (Carpark Applications), Wall Systems, Suspended Timber and Concrete Floors, Ground Floor Slabs, Ceiling Systems, Roofs.

Declare – Red List Free

PIRMAX ISO² Panel is a RED LIST FREE product, ingredients are 100% disclosed to 100 ppm, and do not contain any Red List chemicals.
They have been shown to meet the Materials Petal requirements of the Living Building Challenge and emissions testing criteria for Health + Happiness Petal. PIRMAX ISO² Panel does not exceed maximum limits as defined by CDPH Standard Method v1.2-2017.
PIRMAX ISO² Panel meet the requirements of the WELL Specification AE-ES-SPS-003 relating to WELL X11 Long Term Emission Control and WELL X12 Short Term Emission Control.

Australian Made

PIRMAX ISO² Panel is manufactured in Australia by an Australian owned and operated company, and guarantee the highest quality insulation material. As our products are wholly Australian Made we take pride in our manufacturing to ensure a high standard of quality, service and value.

PIRMAX ISO² Panel Product Details

PIRMAX ISO² Panel Silver “modified PIR rigid thermal insulation”
Panel Size 2400mm x 1200mm (2.88m²) – Custom lengths and widths available upon request#
Facings – Silver embossed aluminium sheet laminated to both sides.

#Subject to minimum order quantities

PIRMAX ISO² Panel Product R-Values

Nominal Thickness	Declared R-value (m²K/W)	Normal Length(mm)	Normal Width(mm)
25	R_d1.05	2400	1200
30	R_d1.30	2400	1200
40	R_d1.90	2400	1200
50	R_d2.00	2400	1200
60	R_d2.35	2400	1200
70	R_d2.85	2400	1200
75	R_d3.30	2400	1200
80	R_d3.55	2400	1200
90	R_d4.00	2400	1200
95	R_d5.00*	2400	1200

PIRMAX ISO² Panel Summary of Testing Results

Test Standard	Test Type	Reported Value
AS/NZS 4859.1:2018	Thermal	Refer to range table
AS/NZS 4859.1:2018 (Appx E)	Surface Corrosion and Delamination	Pass
ASTM E 408-71	Emittance	0.05
AS/NZS 4200.1:2017	Emittance	IR Reflective
AS 2122.1-1993	Flame Propagation-Vertical Surface Ignition	Upon request
AS/NZS 1530.3:1993	Ignitability Index	0
AS/NZS 1530.3:1993	Spread of Flame Indes	0
AS/NZS 1530.3:1993	Heat Evolved Index	0-1
AS/NZS 1530.3:1993	Smoke Development Index	0-1
AS 5637.1:2015	Group Number	2
AS 5637.1:2015	SMORGRA_RC	≤ 100 m²/s² x 1000
California Specification 01350	Volatile Organic Compounds (VOC)	<0.01 mg/m³
California Specification 01350	Maximum Service Temperature	200^{degree celsius}
